Name: Durable Quality Heavy Duty Paver Block Making Machine QT10-15
Availability: InStock

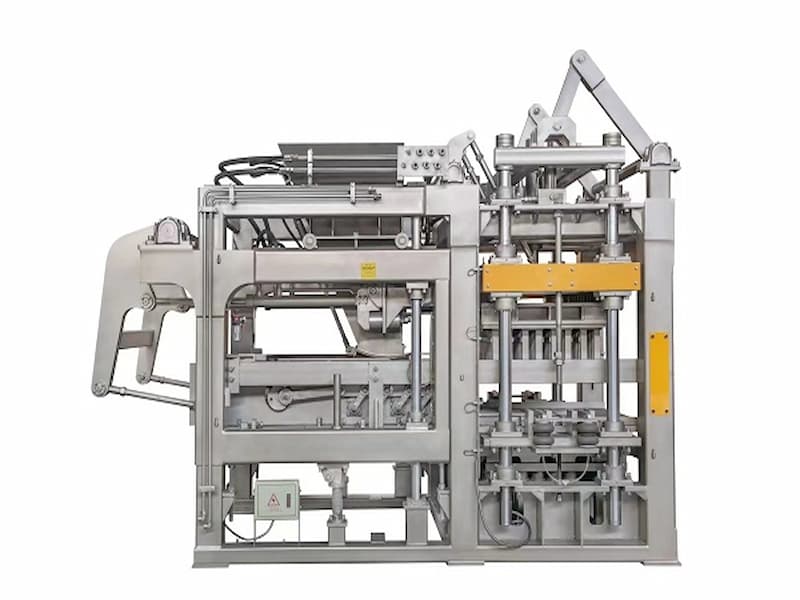

Durable Quality Heavy Duty Paver Block Making Machine QT10-15

Reference video of HD10-15 paver block making machine

The QT10-15 delivers durable, high-volume block production with reliable hydraulic pressure and strong vibration. It supports various molds for paving stones, hollow blocks, and curbstones. The automatic control system ensures precise shaping and fast cycle time (10–15 seconds). Equipped with a sturdy frame and energy-saving motor, it operates steadily under heavy use. Easy mold change and low maintenance reduce downtime.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	10	1980	15840
Solid Block	24011553	51	14784	118278
Holland Paver	20010060	35	6930	55440
Zigzag Paver	225112.560	30	5940	47520

Product Detail

The flexible feeding arm on the QT10-15 enhances material distribution with precision and adaptability. It moves smoothly across the mold, ensuring even raw material spread for consistent block density. This arm reduces spillage and waste, lowering production costs. Its flexible design allows quick adjustment for different block sizes and shapes, minimizing downtime.
The QT10-15 features a synchronized demolding system that ensures faster and more stable block ejection. By coordinating mold vibration and lifting actions precisely, it eliminates cracking and distortion, boosting production efficiency. The durable hydraulic design minimizes wear, while the heavy-duty structure supports continuous operation.
The automatic pallet provider ensures continuous, hands-off pallet feeding to boost production efficiency. It synchronizes perfectly with the machine cycle, reducing manual labor and downtime. Built with a heavy-duty frame, it supports high-frequency vibration and heavy loads for durable performance. The system provides precise pallet positioning, preventing misalignment and block damage.

Block Type

The QT10-15 offers an optional servo frequency modulation drive control system. This advanced technology enables instantaneous vibration start, significantly reducing idle time. The result is a shortened molding cycle for higher output. Servo control also provides exceptional precision over vibration frequency and intensity, ensuring consistent block density and quality. Compared to standard hydraulic systems, the servo drive reduces energy consumption.

Professional Shipping

The QT10-15 paver block making machine features an advanced vibration box that utilizes multiple linkage vibrations. This design ensures uniform force distribution across a large molding area, allowing for the production of various block sizes in a single cycle. The synchronized vibration system significantly enhances product density by eliminating air voids and improving material compaction.

FAQ

1.What types of products can be produced using Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Paver Block Making Machine QT10-15?

Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Paver Block Making Machine QT10-15can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Paver Block Making Machine QT10-15?

This machine can produce up to 1980 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Paver Block Making Machine QT10-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Yixin Machinery Factory Wholesale Durable Quality Heavy Duty Paver Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
