Name: Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15
Availability: InStock

Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15

Reference video of HD6-15 paver block making machine

The QT6-15 heavy duty paver block forming machine features a durable bar on its vibration table, designed to withstand continuous high-intensity operation. The cast vibration box ensures stable, low-noise performance, while the synchronized vibration shaft delivers uniform force across the mould. This integrated system creates strong, concentrated vibration energy, resulting in superior mould filling and high-density block formation.

Production Data

Block Type	Specification（mm）	Qty/Pallet	Qty/Hour	Qty/8 Hours
Hollow Block	400200200	6	1188	9504
Solid Block	24011553	32	8448	67584
Holland Paver	20010060	21	4185	33264
Zigzag Paver	225112.560	20	3960	31680

Product Detail

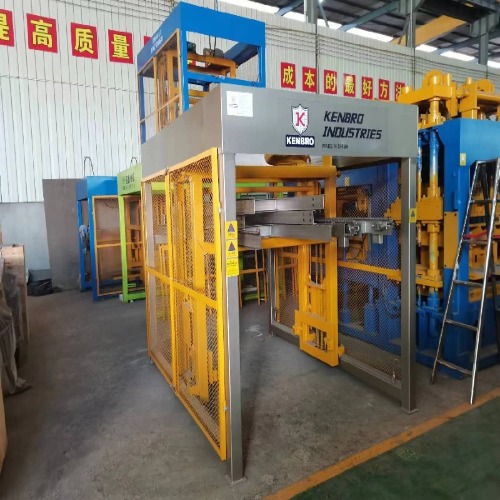

The QT6-15 blocks stacker automatically collects freshly formed paver blocks from the machine output and stacks them in stable layers without manual handling. It reduces labor costs and speeds up production flow by moving finished blocks directly to curing or packaging areas. The stacker handles heavy-duty loads with precision, preventing block damage during transfer. Adjustable stacking patterns suit different block sizes and pallet configurations.

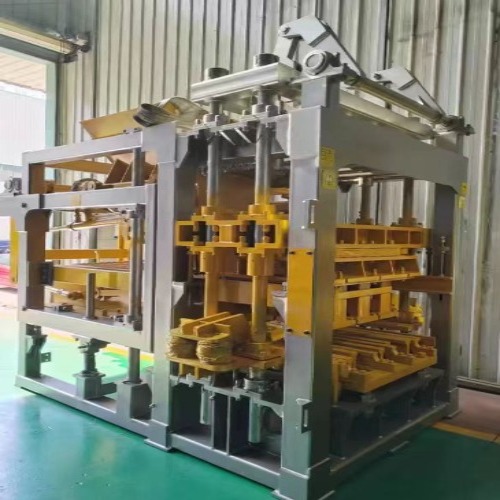

The QT6-15 heavy duty paver block forming machine features long guide sleeves that ensure exceptional stability and balance during operation. These guiding bushes are designed to be raised and lowered, effectively reducing friction and mechanical wear. This smart movement extends the service life of critical components, minimizes maintenance needs, and supports continuous, high-precision block production.

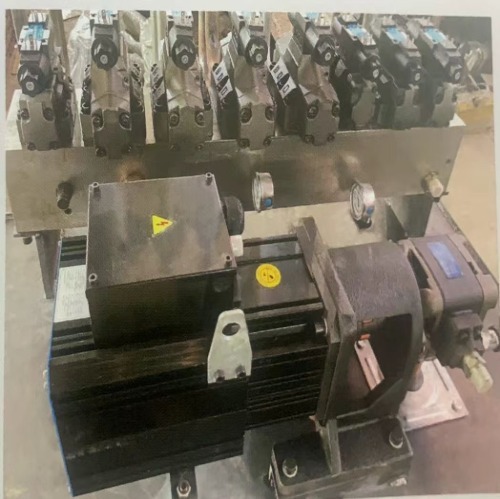

The QT6-15 heavy duty paver block forming machine is equipped with a servo hydraulic system that delivers hydraulic pressure precisely when the machine is running. This intelligent system significantly reduces energy consumption by activating power only on demand. It ensures highly accurate movement control during block forming, pressing, and ejection cycles.

Block Type

The QT6-15 feeding car is engineered with advanced buffering and vibration reduction technology. Rubber shock absorbers and damping springs significantly minimize impact forces during material feeding, protecting the mould and components from excessive vibration. This ensures smoother operation, quieter performance, and longer service life for wear parts. By absorbing shocks, the system also improves block density uniformity and production stability.

Exhibition Experience

The QT6-15 heavy duty paver block forming machine uses airbag technology to lock the mold firmly in place during operation. This system effectively reduces vibration transmission to the mold frame, enhancing forming accuracy and extending component life. Airbag locking ensures stable mold positioning, resulting in consistent block density and shape.

FAQ

1.What types of products can be produced using Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15?

Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.

2. What is the production capacity of the Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15?

This machine can produce up to 1188 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs.

3.What are the raw materials used in the production process of Yixin Machinery e Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15, and can it incorporate industrial waste materials?

The raw materials utilized in the production process of Yixin Machinery Factory Supplier Heavy Duty Paver Block Forming Machine QT6-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What are the payment terms?

The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods.

5. How automated is the system? Do I need a lot of skilled workers to operate it?

The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training.
