Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15
The QT10-15 fully automatic heavy duty tactile paving block making machine is designed for high-volume production of detectable warning surfaces. Its advanced hydraulic system and high-frequency vibration ensure dense, durable blocks with precise dome or truncated patterns. The fully automated cycle controls material feeding, molding, compression, and block ejection with minimal manual intervention. A user-friendly PLC allows quick mould changes for various tactile designs and standard pavers. Robust construction ensures reliable continuous operation, while energy-efficient components reduce power consumption.
Người mẫu :
Yixin Machinery HD10-15Kích thước máy :
11500*3700*2800Kích thước pallet :
1150*880(MM)Thời gian chu kỳ :
11-25(S)Lực rung :
105(KN)Áp suất Vated :
21(MPA)Quyền lực :
58.5(KW)Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15
Reference video of HD10-15 tactile paveing block making machine
The QT10-15 fully automatic tactile paving block making machine vibrates and presses concrete received from the storage hopper to form finished blocks. The high-frequency vibration system ensures thorough material consolidation, while hydraulic pressure compacts the mix into dense, durable tactile pavers. This synchronized process eliminates air voids and creates uniform surface patterns essential for guidance paving. The automated cycle manages material feeding, vibration duration, and pressing force for consistent quality.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 10 | 1980 | 15840 |
| Solid Block | 240*115*53 | 51 | 14784 | 118278 |
| Holland Paver | 200*100*60 | 35 | 6930 | 55440 |
| Zigzag Paver | 225*112.5*60 | 30 | 5940 | 47520 |
Product Detail
Block Display

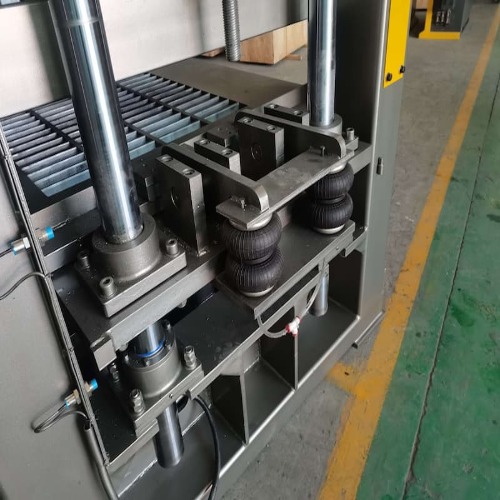

QT10-15 tactile paving block making machine is equipped with a dynamic and static vibration table system. This dual-mode technology delivers powerful vibration during the compression phase, ensuring thorough material consolidation and air removal for dense, high-strength blocks. The static mode maintains stability during mould filling and ejection, preventing material displacement. The vibration table operates with adjustable frequency and amplitude, allowing fine-tuning for different mix designs and block types. This system produces tactile pavers with precise surface patterns, sharp edges, and uniform texture, meeting accessibility standards while maximizing production efficiency and reducing reject rates.
The QT10-15 heavy duty tactile paving block making machine includes an advance and retreat cushion pad system that provides essential buffering for the feeding car. This component effectively reduces vibration and impact forces as the car moves forward and backward during material delivery. By absorbing shocks, the cushion pad protects both the feeding mechanism and the main machine frame from excessive wear. It ensures smoother, quieter operation while maintaining precise material placement. The reduced vibration also improves block formation quality and extends component service life. This practical feature enhances overall production reliability and minimizes maintenance requirements.
| FAQ |
|
1.What types of products can be produced using Yixin Machinery Factory Wholesale Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15?
Yixin Machinery Factory Wholesale Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks. |
|
2. What is the production capacity of the Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15?
This machine can produce up to 1980 hollow blocks(400*200*200mm) per hour, making it a highly efficient and productive option for your paver block production needs. |
|
3.What are the raw materials used in the production process of Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15, and can it incorporate industrial waste materials?
The raw materials utilized in the production process of Fully Production Automatic Heavy Duty Tactile Paving Block Making Machine QT10-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others. |
|
4.What are the payment terms?
The advance deposit paid by T/T is 30%,and the balance before t/ T loading is 70%，You can also choose other trading methods. |
|
5. How automated is the system? Do I need a lot of skilled workers to operate it? The machine uses a Siemens PLC automatic control system with a touchscreen interface. The entire process—from material batching to molding and pallet feeding—is automated. You typically only need 3 to 4 workers: one to monitor the control panel, one to operate the forklift for pallet handling, and one to manage the mixer and raw materials. No specialized technical skills are required beyond basic training. |
