Name: Fully Set Cement Block Making Machine QT8-15
Availability: InStock

Fully Set Cement Block Making Machine QT8-15

Reference video of QT8-15 cement block making machine

The QT8-15 Extend type integrates high-efficiency vibrotechnique for faster forming and superior compactedness. Its enhanced vibration system ensures rapid, uniform material consolidation, reducing cycle time while boosting block density. This technology minimizes void content, producing stronger, more durable blocks. The extended design accommodates higher production volumes without compromising stability.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	8	1440	11520-15360
Solid Block	24011553	42	10080	60480-80640
Holland Block	20010060	28	5040	40320
Zigzag Block	225112.560	24	4320	34560

Product Detail

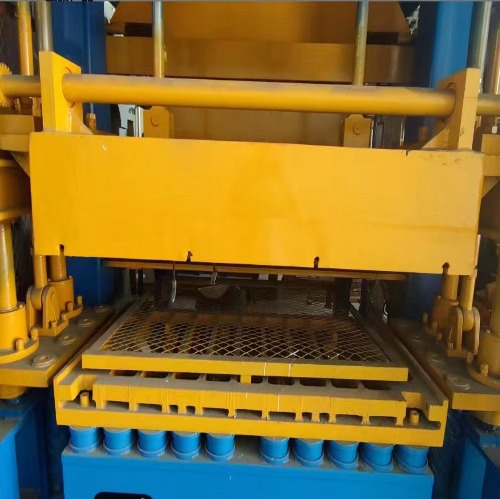

The cast tamper head ensures superior compaction and uniform block density. Its robust casting delivers high impact resistance, reducing wear and maintenance. The precision-engineered surface creates smooth, dimensionally accurate blocks. Optimized for QT8-15, it enhances production efficiency with consistent vibration transfer, resulting in stronger, high-quality finished products.

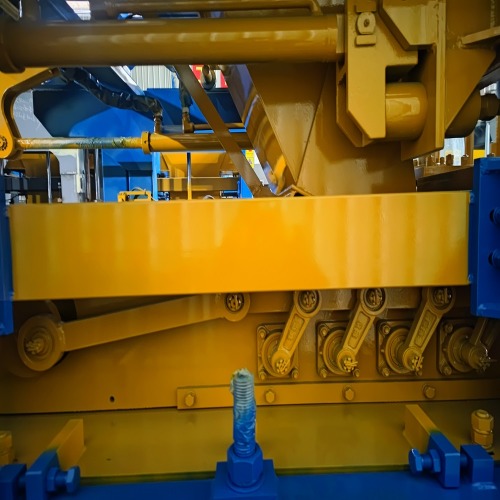

The flexible arm enhances production agility by supporting rapid mold changes and adjusting to different block sizes without manual intervention. It reduces downtime, improves operational safety, and ensures consistent handling of green blocks. Designed for durability, it minimizes vibration and maintenance needs. Ideal for multi-product lines, the flexible arm optimizes automation, reduces labor costs, and boosts overall efficiency in concrete block manufacturing.

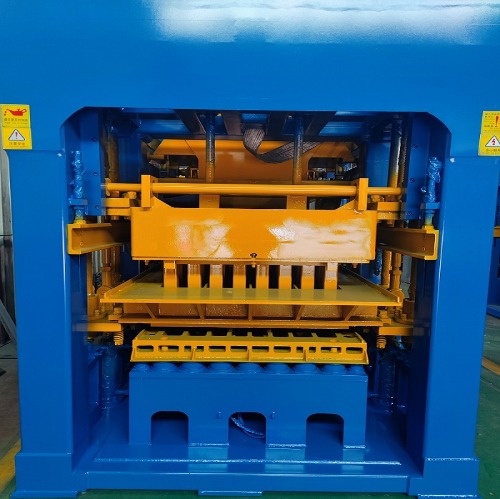

The cast vibration table ensures high-density block forming through dual-shaft forced synchronization. It delivers strong, uniform vibration across the mold, enabling instant compaction of semi-dry concrete. The table reduces air voids and ensures consistent block strength. With an adjustable vibration frequency, it adapts to various raw materials and block sizes. The robust design withstands continuous heavy-duty operation. Quick response and stable performance improve production efficiency while lowering cement consumption.

Block Display

The QT8-15 features a high-heat treatment technology that significantly enhances mould durability and structural firmness. By subjecting key components to extreme thermal processing, the material's grain structure is refined, increasing hardness and resistance to wear, cracks, and deformation under heavy cycling. This results in a more robust mould that maintains precise block dimensions over extended production runs.

Exhibition Experience

The QT8-15 fully automatic cement block making machine can be equipped with an optional second materials device. This upgrade enables production of all types of color paving blocks. By adding a second layer of colored or surface material, the machine creates durable, aesthetically pleasing pavers without compromising strength.

FAQ

1.How long does the product production cycle typically take?

Fully Set Cement Block Making Machine QT8-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Fully Set Cement Block Making Machine QT8-15?

The raw materials utilized in the production process of Fully Set Cement Block Making Machine QT8-15primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Fully Set Cement Block Making Machine QT8-15 after mold confirmation?

The estimated date of shipment for the Fully Set Cement Block Making Machine QT8-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5. Can the Fully Set Cement Block Making Machine QT8-15 be equipped with an additional device to produce various types of colored paving blocks?

Yes, the Fully Set Cement Block Making Machine QT8-15 can indeed be upgraded or equipped with a secondary materials device that allows for the production of a wide range of colored paving blocks.
