Name: Automatic Interlocking Block Making Machine QT4-15
Availability: InStock

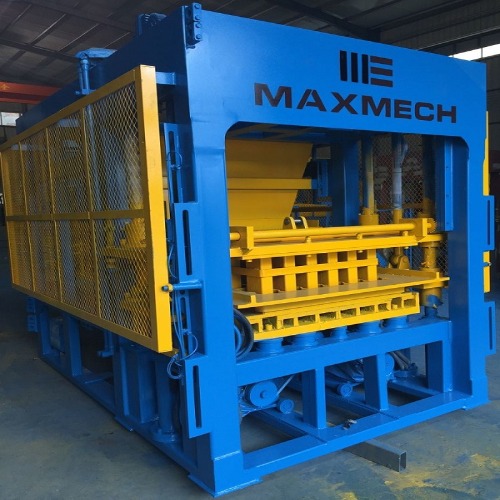

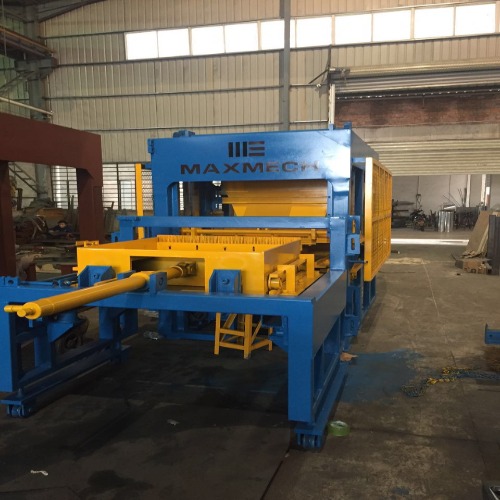

Automatic Interlocking Block Making Machine QT4-15

Reference video of QT4-15 Interlocking block making machine

The QT4-15 features an extend-type high-efficiency vibrotechnique system that accelerates forming cycles while significantly improving block compactedness. This advanced vibration technology ensures uniform density distribution, reducing material waste and enhancing product strength. Faster production speeds do not compromise quality; instead, they enable higher output with superior structural integrity.

Production Data

Block Type	Specification（mm）	Qty/Palllet	Qty/Hour	Qty/Hours
Hollow Block	400200200	4	720	5760-7680
Solid Block	24011553	26	6240	37400-49920
Holland Block	20010060	16	16	23040
Zigzag Block	225112.560	14	14	20160

Product Detail

The guiding system of the QT4-15 ensures precise alignment and smooth vertical movement of the mold and worktable during block forming. Heavy-duty guide posts and bronze bushings reduce friction and vibration, enhancing component longevity. This rigid guidance maintains accurate mold closure, improving product consistency and reducing reject rates.
The stirring teeth of the QT4-15 automatic interlocking block making machine are engineered for superior mixing efficiency. They ensure homogeneous blending of raw materials like cement, sand, and aggregates, preventing segregation. Made from high-strength wear-resistant alloy, these teeth offer long service life and reduce downtime for replacement.

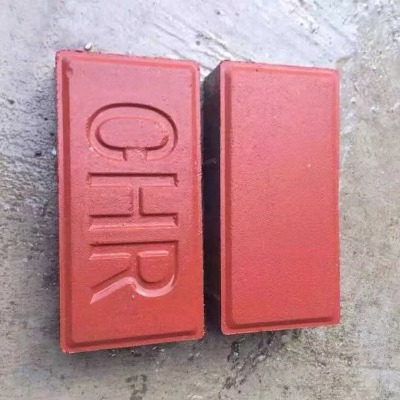

The QT4-15 automatic block machine features an advanced color mixer system that supports an optional second materials device. This upgrade enables seamless production of all types of colored paving blocks. The system precisely layers and mixes surface color materials with base concrete, offering superior color consistency and finish.

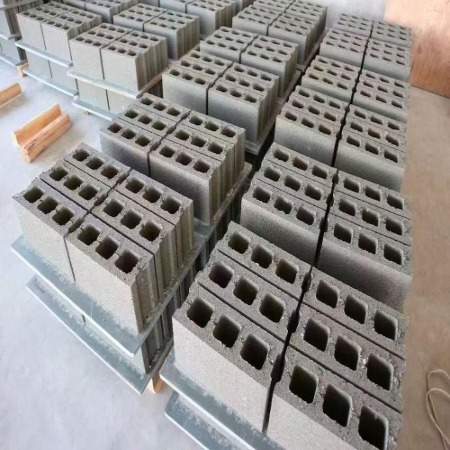

Block Display

The QT4-15 automatic interlocking block making machine delivers high-output production of various block types, including interlocking paving bricks and hollow blocks. It supports plant feasibility analysis by offering data on raw material consumption, energy use, and projected ROI. The building program outlines minimal space and structural requirements for installation. Plant layout design focuses on material flow efficiency, integrating mixer, conveyor, machine, and curing area. Planning includes shift schedules, maintenance access, and scalability, ensuring streamlined operations and reduced labor costs.

Exhibition Experience

The QT4-15 automatic interlocking block making machine features high-heat treatment technology applied to its moulds. This specialized process significantly enhances the mould’s hardness, structural integrity, and resistance to wear. By withstanding extreme temperatures and mechanical stress, the treated mould remains firm and durable over prolonged production cycles.

FAQ

1.How long does the product production cycle typically take?

Yixin Machinery Automatic Interlocking Block Making Machine QT4-15 can produce a variety of products including external wall blocks, internal wall blocks, PC stone permeable bricks, flower wall blocks, floor blocks, dike blocks, chain blocks, curbs, and other types of blocks.The production time for brick making machines is generally 25-30 working days, depending on the customer's production line requirements.

2. How many days to change vibration box oil ,what kind of oil can be used inside?

The hydraulic oil 68 degree can be used, the amount is from bottom 3cm. Strongly suggest 1 month change one time oil.

3.What are the raw materials used in the production process of Yixin Machinery Automatic Interlocking Block Making Machine QT4-15?

The raw materials utilized in the production process of Yixin Machinery Automatic Interlocking Block Making Machine QT4-15 primarily include sand, gravel, and cement. Additionally, this machine has the capability to incorporate a significant amount of industrial waste materials such as slag, coal gangue, clay, ceramisite, perlite, and others.

4.What is the estimated date of shipment for the Yixin Machinery Automatic Interlocking Block Making Machine QT4-15 after mold confirmation?

The estimated date of shipment for Automatic Interlocking Block Making Machine QT4-15 is 25-30 working days following the confirmation of the mold. This timeframe allows for the necessary preparations, assembly, and quality checks to ensure that the machine is ready for dispatch and meets the customer's specifications.

5.Can this machine make my bricks or bricks of other sizes?

We will design and make mold according to customer's drawing.
