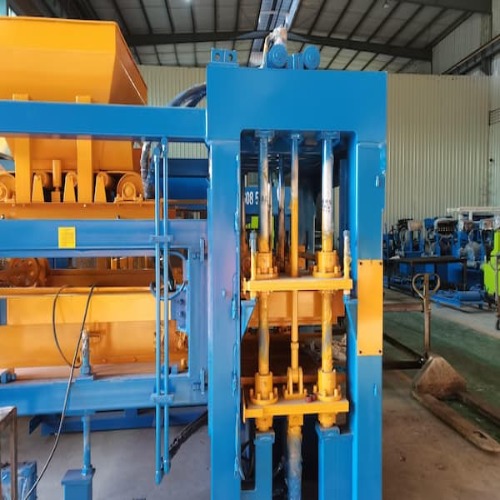

Direct Sale Fully Set Hydraulic Chain Block Forming Machine QT6-15
Yixin Machinery Direct Sale Fully Set Hydraulic Chain Block Forming Machine QT6-15 is a top-of-the-line equipment for manufacturing blocks with precision and speed. With its advanced hydraulic system and high efficiency design, it is able to produce high quality cement blocks in large quantities.
Người mẫu :
Yixin Machinery QT6-15Kích thước máy :
9450*3300*2700(MM)Kích thước pallet :
880*680/980*680(MM)Thời gian chu kỳ :
15-25(S)Lực rung :
68(KN)Áp suất Vated :
21(MPA)Quyền lực :
31.4(KW)Direct Sale Fully Set Hydraulic Chain Block Forming Machine QT6-15
Reference video of Direct Sale Fully Set Hydraulic Chain Block Forming Machine QT6-15:
The QT6-15 is a direct sale, fully set hydraulic chain block forming machine designed for efficient, complete production line integration. Featuring an advanced hydraulic system and intelligent PLC control, it ensures precise shaping, uniform density, and consistent block quality. Its robust construction and high vibration force deliver reliable performance for continuous operation. The fully set design includes batching, mixing, forming, and chain transfer systems. A reference video is available to demonstrate the complete forming cycle, from material feeding to finished block output. Ideal for medium-scale projects seeking direct sale pricing, fully set convenience, and durable chain block forming.
Production Data
| Block Type | Specification（mm） | Qty/Pallet | Qty/Hour | Qty/8 Hours |
| Hollow Block | 400*200*200 | 6 | 1080 | 8640-11520 |
| Solid Brick | 240*115*53 | 32 | 7680 | 46080-61140 |
| Holland Paver | 200*100*60 | 21 | 3780 | 30420 |
| Zigzag Paver | 225*112.5*60 | 20 | 3600 | 28800 |
Product Details
Block Display
The QT6-15 features an integrated block display system designed for efficient inspection of finished zigzag paving bricks. This system allows operators to easily examine zigzag pattern clarity, surface finish, dimensional accuracy, edge integrity, and color consistency before stacking and packaging. Equipped with adjustable LED lighting and smooth roller tables, it protects brick surfaces during movement while enabling thorough visual quality checks. The user-friendly layout supports quick sampling, quality control documentation, and customer viewing. Ideal for wholesale versatile robust production, this block display system enhances quality assurance, reduces defective output, and ensures only high-quality zigzag paving bricks proceed to stacking and shipping.
Customer Access
The QT6-15 is designed with customer access in mind, offering easy entry points for operation, maintenance, and inspection. Wide safety doors, removable panels, and strategically placed ladders provide convenient access to the hydraulic unit, PLC control panel, molding chamber, chain transfer system, and conveyor. Clear signage and ergonomic layouts reduce operator fatigue while improving safety. Tool-free access points allow quick mold changes and routine cleaning. This customer-focused design minimizes downtime, simplifies training, and ensures maintenance tasks can be performed efficiently. Ideal for direct sale fully set operations, this machine delivers user-friendly access for daily chain block forming production.
| FAQ |
|
1.How many liter hydraulic oil used? 68 degree hydraulic oil 600L request. |
|
2.How do QT6-15 blocks compare to competitors? Side-by-side comparisons show QT6-15 blocks have tighter dimensional tolerances (±0.5mm vs. ±1–2mm), cleaner edges without chipping, and 15–20% higher compressive strength at the same mix design. Test reports for compression strength, water absorption, and freeze-thaw resistance are displayed alongside each block for independent verification. Visitors are encouraged to test blocks themselves using provided inspection tools. |
|
3.Can I see live production or take samples? Yes, live demonstrations are available at exhibitions with sufficient space, and HD video of the QT6-15 in operation plays alongside the display. Visitors are encouraged to handle, measure, and compare blocks using provided calipers, scales, and leveling plates. Small sample blocks are available to take home, and larger samples can be shipped upon request. |
|
4.Does the machine come with installation and training support? Yes, we provide on-site installation guidance, operator training, and after-sales technical support to ensure smooth startup and ongoing operation. Remote troubleshooting, spare parts supply, and maintenance services are also available. |
|
5.Can I order custom molds for blocks shown in the display? Yes, we design and manufacture custom molds based on any block in the display or your own drawings and samples. The process includes CAD drawing approval, sample production with your mix design (credited toward final mold purchase), and delivery within 20–25 days. Mold options include standard steel, hardened steel, chrome-plated, and carbide for different production volumes and abrasive materials. |
